High-efficiency lightweight progress-capture pulley

MICRO TRAXION is a compact and lightweight progress-capture pulley (85 g) designed for crevasse rescue, hauling, and self-rescue, and for use as an emergency ascender. The cam can be locked in the open position so the device can be used as a simple pulley. Sealed ball bearings provide excellent efficiency (91 %).

• Versatile:
  - designed for crevasse rescue, hauling, self-rescue, and for use as an emergency ascender

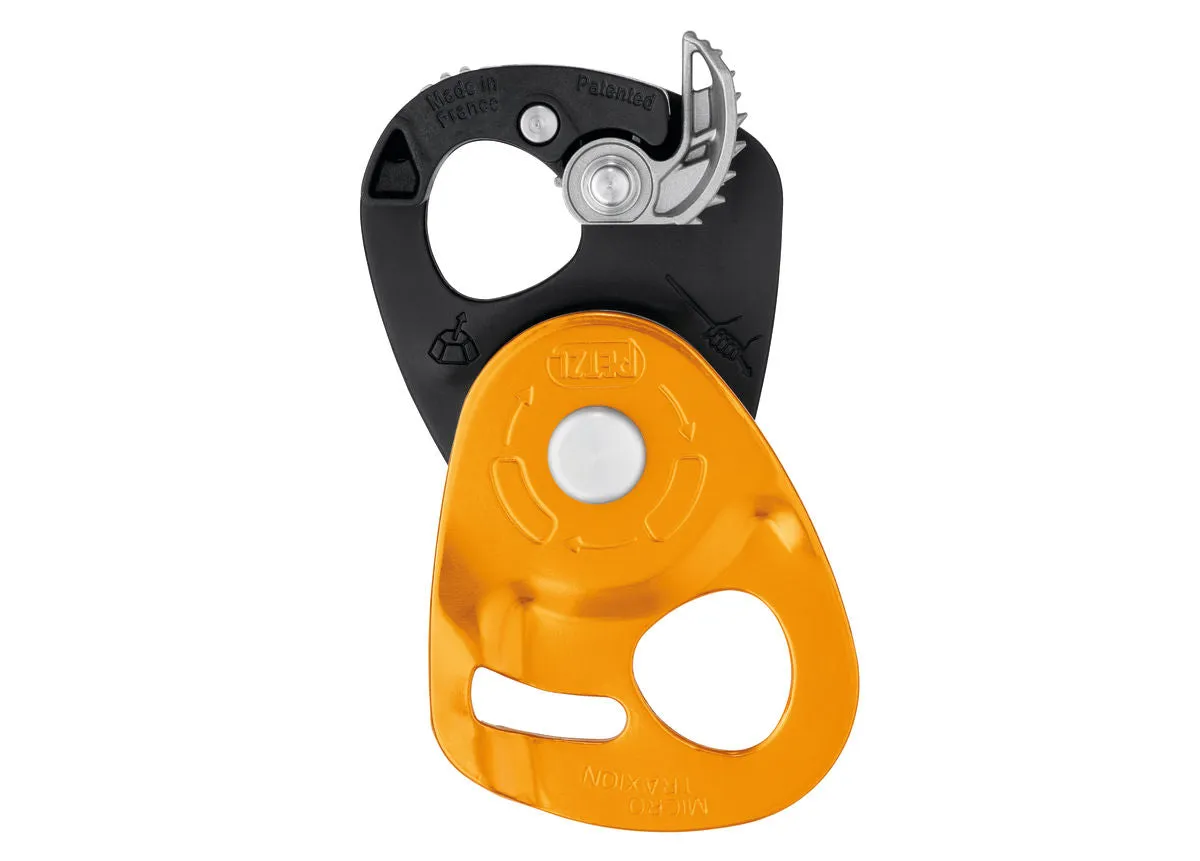

  - may be used as a simple pulley by locking the cam in the raised position
• Very light and compact:
  - only 85 g
  - hole allows a Sm’D carabiner to be connected to the pulley with a cord, making the device loss-proof
• High efficiency:
  - sealed ball bearings provide excellent efficiency (91 %)
  - works even on frozen or muddy ropes
  - for use on 8 to 11 mm diameter ropes
  - rope installation diagrams engraved inside the pulley
• Weight: 85 g

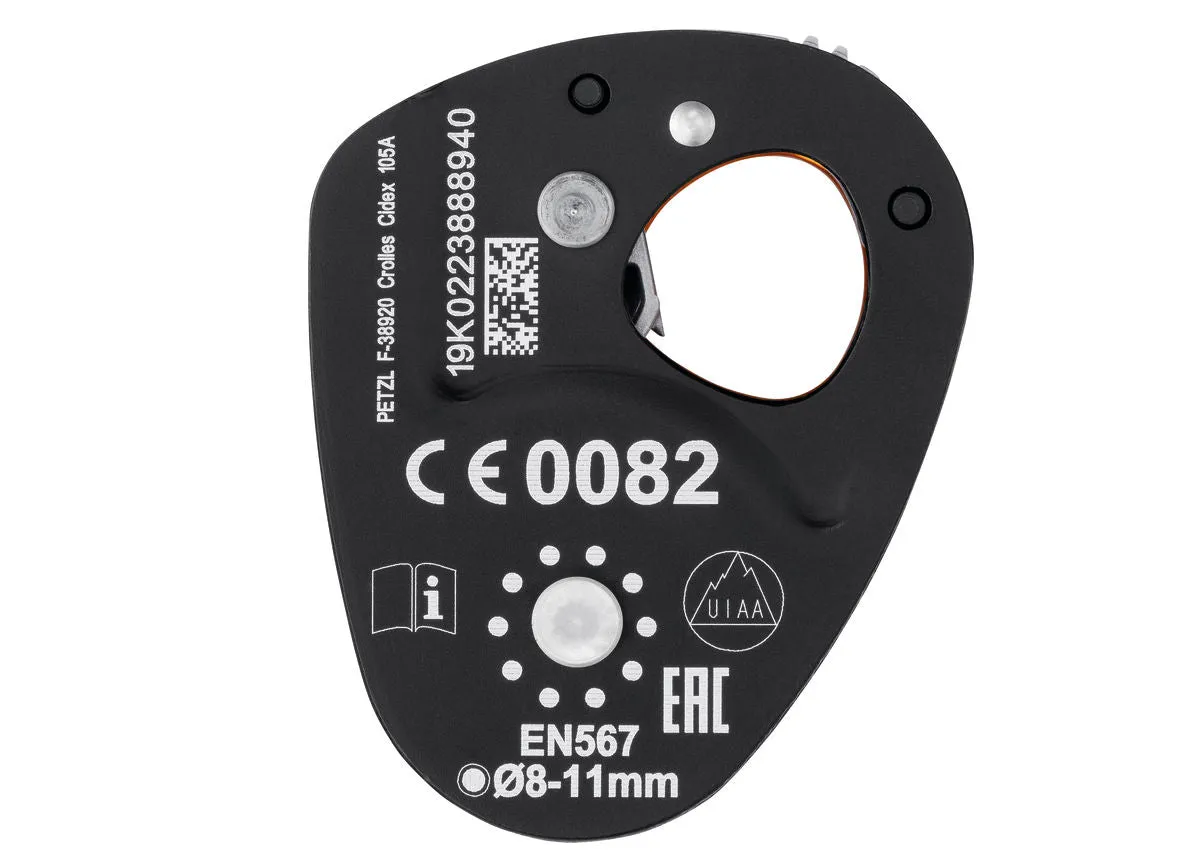

• Certification(s): CE EN 567, UKCA, UIAA
• Min. rope diameter: 8 mm
• Max. rope diameter: 11 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 27 mm
• Working load: 2 x 2.5 = 5 kN
• Breaking strength: 2 x 7,5 = 15 kN
• Working load as progress capture pulley: 2.5 kN
• Breaking strength as progress capture pulley: 4 kN
• Efficiency: 91 %
